Product name : NX70 flat wagon

Enlarge Image

Back

[Next Product]→

Details:

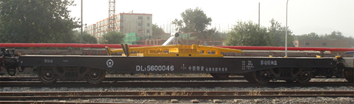

NX70 flat wagon

Production description : the NX70 flat wagon is a four-shafter axle flat bogie wagon with multi-function of loading and tranporting, standard railway guage and 70t loading capacity. It's capable of loading containers of 1AAA, 1AA, 1A, 1AX, 1CC, 1C, 1CX set by ISO 668: 1995 series 1 container-classification, size and rated weight. In addition, it can load and transport steel, automobiles, tractors, case-cargo, large-scale concrete bridges military fittings, and so on.

NX70 flat wagon

The amount and form of containers

Case Model	Quantity	Placing form	Total rated weight
1AAA, 1AA, 1A, 1AX	1	Place in order	30.48t
1CC, 1C, 1CX	1	Place in order	60.96t
International 45ft non-standard case	1	Place in order	30.48t
International 48ft non-standard case	1	Place in order	30.48t
International 50ft non-standard case	1	Place in order	30.48t

Main technical parameters

Track gauge(mm)	1435
Loading capacity(t)	70
Tare weight	23.8
Convergent load(t/m)	30t/1m, 35t/2m, 45t/3m, 50t/4m, 55t/5m
Length of the car(mm)	16366
Width of the car(mm)	3157
Commercial operation speed(km/h)	120
Bogie	K5 or K6
Coupler	No.17 coupler made of E level steel
